Overview

Basic Info.

Model NO.	module
Certification	CE
Manufacturing Technology	Discrete Device
Material	Power Semiconductor
Model	Inverter, Induction Heating, Chopper, UPS Power
Package	SMD
Signal Processing	Analog Digital Composite and Function
Type	Intrinsic Semiconductor
Chip Type	Fast Thyristor Rectifier Moudles
Voltage Range	600V-5000V
Outline	a-N Code, or Others Customs′ Need
Install	Parallel, Series
General Feature	Isolated Mounting Base
Phase	Single Phase
Frequency	50-60Hz
Output Power	2kw-70kw
Conduction Voltage	20V-380V
Trademark	PowerPassion
Origin	China
HS Code	8504409190
Production Capacity	60000pieces/Year

Product Description

Product Description

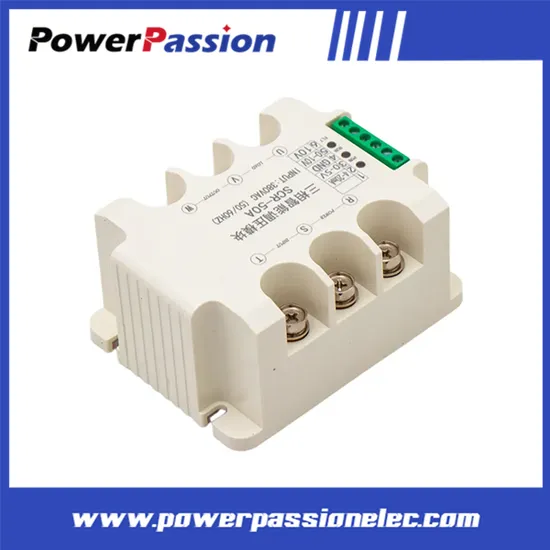

Thyristor Module

• High-Quality Construction: This SCR power control module is designed with high-quality components, ensuring reliable performance and durability in demanding applications, such as welding machines.

• Versatile Application: The module is suitable for various machine applications, including welding machines, and can be configured in single or array configurations to meet specific user requirements.

• Wide Operating Temperature Range: The module operates within a wide temperature range of -40°C to 150°C, making it suitable for use in harsh environments.

• High-Current Handling: The module can handle a maximum current of 800A, making it ideal for applications that require high power control.

• Comprehensive Shipping Options: The module is shipped from multiple ports, including Shanghai, Guangzhou, and Shenzhen, and can be shipped via EMS, DHL, UPS, FedEx, and TNT, ensuring fast and convenient delivery to customers worldwide.

product name	single phase intelligent voltage regulation module
frequency	50-60HZ
phase	1
type	power module
voltage	220V-380V
output power	2KW-70KW

Click here and send your inquiry details
Click here and send your inquiry details
Product Parameters

Type	IT(AV)	VDRM/ VRRM	VTM/ITM		IDRM/IRRM	VGT	Viso
	A	V	V	A	mA	V	V(AC)
MT 30A	30	400-1800	1.5	80	8	2.5	2500
MT 60A	55	400-1800	1.5	80	8	2.5	2500
MT 90A	90	400-1800	1.9	270	15	2.5	2500
MT 120A	110	400-1800	1.9	330	20	2.5	2500
MT 200A	200	400-1800	1.9	600	30	2.5	2500
MT 250A	250	400-1800	1.9	750	30	2.5	2500
MT 300A	300	400-1800	1.9	900	40	2.5	2500
MT 400A	400	400-1800	1.9	1050	40	3.0	2500
MT 500A	500	400-1800	1.9	1500	40	3.0	2500
MT 800A	800	400-1800	1.9	2400	40	3.0	2500
MT 500*A	500	400-1800	1.9	1500	40	3.0	2500
MT 800*A	800	400-1800	1.9	2400	40	3.0	2500

Detailed Photos

Click here and send your inquiry details

Features:

• Isolated mounting base,2500V~6000V

• International standard packagePressure contact technology with increased power cycling capability

• Air-cooling for upto350A.for over 400A, air-cooling or water-cooling

• (TSC) SVC

• Simple mounting and easy maintenance

• Space and weight saving

• Chip electrically insolated from baseboard AC 2500V

• International standard seal

• Vacuum+sufficient hydrogen protection bonding technique

• Compression connection structure, fine temperature ,The characteristic and below power circulation ability

• Modules under 350A with compulsive wind-cooling Modulesunder 400A either with wind-cooling or water-cooling

• The installment is simple, the use service is convenient

• The volume is small , the weight is light

Applications:

• AC/DC motor control

• Various rectifier power supply

• Industrial heating control

• Light-dimmer,Contactless switch

• Soft startAC motor control

• Welding power supply Convertor

• UPS, Battery DC chargers or dischargers

• (TSC) SVC

• DC supply for PWM inverter

• Various rectifying power supply

• Industrial heating control

• Dimming

• Contactless switch

• Motor soft start

• Static reactive compensation

• Electric welding machineFrequency converter

• UPS power supply

• Battery charge and discharge

  Click here and send your inquiry details

Click here and send your inquiry details

related products

Click here and send your inquiry details

Click here and send your inquiry details

Certifications Company Profile
COMPANY EQUIPMENT We have our own equipment, our own warehouse,imported raw materials si,monocrystalline silicon, and aluminum profiles.
Click here and send your inquiry details Packaging & Shipping

Do you provide after-sales service? Of course, we offer comprehensive after-sales service. If you encounter any issues with our products during use, please feel free to contact us, and we will do our best to solve your problems. Within the warranty period, if there are any quality issues with the product, we will replace or repair it for free.

2. How can I place an order for your thyristor products?

You can place an order by consulting our sales staff online, sending a purchase order to our email, or calling our order hotline directly.

3. Do you provide samples, and how is the charging handled?

For low-value standard products, we can provide free samples for testing, but the customer is responsible for the shipping costs. High-value product samples come with a discount, which can be discussed on a case-by-case basis.

4. Do you have SCR Power Regulators products in stock?

We have some conventional models in stock. For specific inventory, please consult our sales staff. For non-stock products, our delivery time is usually 15-30 days.

5. How can one determine if a thyristor is damaged?

You can determine if a thyristor is damaged by checking if there are any anomalies in its forward and reverse blocking voltages. If so, the thyristor may be damaged. For specific products, please consult an engineer for detailed numerical reference and guidance.
