DESCRIPTION

Basic Info.

Model NO.	TNS-10-40KVA
Frequency Characteristics	Low Frequency
Usage	SVC, JIW, Tns
Frequency	Low Frequency
Size	Large
Iron Core Shape	Ring
Power Source	Switching Regulated Power Supply
Application Range	Industrial and Mining Enterprises
Brand	Chwenma
Insulated Strength	2500V, 1min Does Not Have The Puncture
Insulated Electric Resistance	≥5mΩ
Efficiency	≥98%
Working Frequency	50~60Hz
Ambient Temperature	-15ºC~+45ºC
Relative Humidity	≤90%
Stabilizing Accuracy	±1% ~5%
Waveform Distortion	≤ 0.1%
Input Voltage	380V / 400V / 440V / 480V (Can Be Customized)
Transport Package	Wooden Boxes
Specification	10KVA-3600KVA
Trademark	CHWENMA
Origin	Zhejiang, China
HS Code	8504401990

Product Description

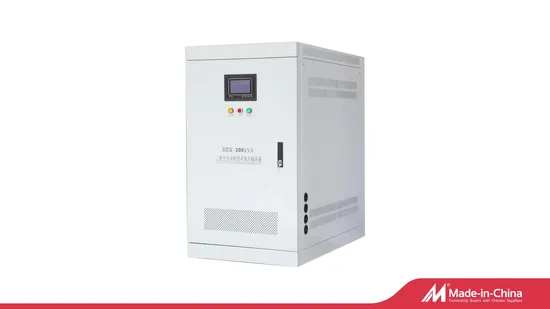

TNS (SVC) -6kva medical equipment equipped with special regulators SFW -100 kva three-phase regulator anti-interference
SVC new product development automatic ac household voltage stabilizer consists of automatic coupling regulator, sampling control board, actuator. It has the characteristics of small volume, light weight, small distortion of output waveform, fast response and so on. Especially suitable for home air conditioning, refrigerator, television, music center and so on. It can also extend their range of use, and is thus a stabilizer of the idealistic AC, the modern home. The product has the least power consumption and can be used continuously.
TECHNICAL PARAMETERS:

No.	Item Name	Item Description
1	OUTPUT VOLTAGE	260-450V
2	WORKING FREQUENCY	50 / 60Hz
3	REGULATION MODE	Simultaneous phase regulation
4	CONSTANT VOLTAGE PRECISION	±(1~5%) adjustable
5	NOISE	55 dB
6	INSULATION CLASS	F
7	OPERATION TIME	≥ 100,000 hours
8	PROTECTION CLASS	IP 20
9	VOLTAGE WITHSTANDING	2000V, 1min. Not broken
10	WAVE DEFORMATION / DISTORTION	≤ 0.1%
11	EFFICIENCY	≥ 98%
12	INSULATION RESISTANCE (MΩ)	≥ 5MΩ
13	RESPONSE TIME (ms)	≤ 100ms
14	TIME FOR STABILIZING	When the input voltage jumps 10% relative to the rated value, the stabilizing time is less than 1.5s.
15	PACKING	Plywood packing
16	ALTITUDE	< 2000m
17	RELATIVE HUMIDITY	< 90%
18	AMBIENT TEMPERATURE (ºC)	-15ºC to +45ºC
19	COOLING METHOD	Forced air cooling with fan
20	ANTI-SURGE PERFORMANCE	The input terminal is equipped with a high-energy surge impulse suppressor, which effectively solves the fatal impact of the pulse spike voltage between 10μs and 100μs, such as lightning induction in the equipment.
